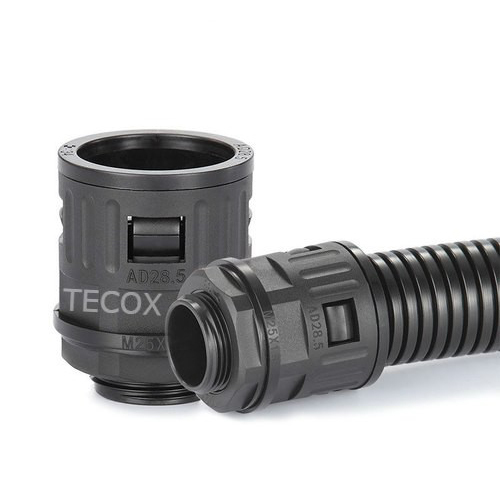

POLYAMIDE CONDUID GLAND MATRIC THREAD

POLYAMIDE CONDUID GLAND MATRIC THREAD Specification

Features
Weatherproof, dustproof, corrosion-resistant, durable, easy installation, high tensile strength, provides secure cable entry

Cable Type
Suitable for flexible conduits and cable entries

Usage & Applications
Electrical panels, control boxes, machinery, instrumentation, industrial automation

Weight
Varies by size; lightweight

Diameter
Threaded metric sizes as specified (e.g., M20 = 20mm)

Locking Type
Locknut type with strain relief design

Install Type
Screw fit (Metric Thread)

Insulation
Excellent electrical insulation

Rated Temperature
-20C to +100C (short term up to 120C)

Tensile Strength
High tensile strength due to polyamide construction

Operating Temperature
-20C to +100C (short term max 120C)

Product Type
Polyamide Conduit Gland Metric Thread

Length
Custom lengths as per requirement

Insulation Material
Polyamide (PA 6) body

Application
Securing and sealing cable entries in panels, electrical enclosures, and machinery

Storage Temperature
-40C to +100C

Connector Color
Typically black or grey

Dimension (L*W*H)
Available in various metric thread sizes (e.g., M16, M20, M25, M32, M40, M50, M63, etc.)

Color
Black / Grey (other colors on request)

Material
Polyamide 6 (Nylon 6)

Size
M16, M20, M25, M32, M40, M50, M63 (other metric sizes available)

Standard Packaging
Polybag or box, bulk and retail options

Temperature Shock Resistance
-40C to +120C (short-term withstand)

Mounting Type
Screw-on with locknut

Gland Nut Material
Polyamide PA6 (glass-filled for extra strength)

Thread Standard
Metric Thread DIN EN 60423

Sealing Degree
IP68 (dust-tight, protected against prolonged effects of water immersion)

Chemical Resistance
Resistant to oils, acids, and solvents

UV Resistance
Yes, suitable for outdoor use

Service Life
Above 20 years under standard conditions

RoHS Compliance
Yes

Reusable
Yes, re-mountable for maintenance purposes

Torque Range
3 Nm to 10 Nm depending on size

Suitable Conduit
Plastic corrugated, flexible, and smooth conduits

Halogen Free
Yes

Flame Retardancy
UL94 V2

Minimum Order Quantity
100 pieces

Protection Class
IP68 / NEMA 4X

About POLYAMIDE CONDUID GLAND MATRIC THREAD

Grab Yours during this exclusive Saleour elite Polyamide Conduit Gland Metric Thread raises industrial standards! Engineered with phenomenal IP68 rated sealing, UV resistance, and flame-retardancy (UL94 V2), this opulent gland ensures weatherproof, dustproof, and corrosion-resistant cable entries. With high tensile strength and superior chemical resistance, its tailored for high-stress, outdoor, and automation environments. Enjoy easy installation, bulk discounts, and customizable thread sizes (M16M63, etc.). Halogen-free, RoHS-compliant, and packing a service life above 20 yearssecure your advanced cable connections today! Discount on minimum order of 100 pieces.

Elite Usage & Advantages

POLYAMIDE CONDUIT GLAND METRIC THREAD is widely used as a premium cable entry sealing solution in electrical panels, control cabinets, automation machinery, and industrial instrumentation. The phenomenal advantage is its outstanding IP68 weatherproof protection, exceptional tensile strength, and halogen-free, flame-retardant design, ensuring elite safety. Trusted by electricians, panel builders, OEMs, and plant operators across sectors, it guarantees impeccable reliability and easy reusability for maintenance.

Packaging, Certification & Shipment

Each OPULENT POLYAMIDE CONDUIT GLAND METRIC THREAD is supplied in secured polybags or robust boxes, suiting both bulk and retail outlay requirements. Certified for RoHS, UL94 V2 flame retardancy, and IP68/NEMA-4X, it excels in both domestic mar and international compliance. Expect quick shipment timelines, often within days of order, delivering safety and quality straight to your project siteno compromise on excellence.

FAQs of POLYAMIDE CONDUID GLAND MATRIC THREAD:

Q: How is the Polyamide Conduit Gland Metric Thread typically installed?

A: The gland is installed using a screw-on with locknut method, suitable for plastic corrugated, flexible, and smooth conduits. Simply align, screw in, and secure with the supplied locknut for a robust, watertight seal.

Q: What are the main benefits of using this Polyamide Conduit Gland?

A: Key benefits include superior IP68 sealing, flame-retardancy, UV and chemical resistance, high tensile strength, and a long service life of over 20 years, offering opulent reliability for electrical panels and machinery.

Q: Where is this conduit gland most commonly used?

A: Its mainly used in electrical enclosures, control cabinets, machinery, and industrial automation where secure, weatherproof cable entries are essential, both in indoor and outdoor environments.

Q: What thread standards and certifications does this product conform to?

A: The Polyamide Conduit Gland features Metric Thread DIN EN 60423, complies with RoHS standards, and carries UL94 V2 flame rating and IP68/NEMA 4X protection certifications.

Q: What is the minimum order quantity and how is the product shipped?

A: The minimum order quantity is 100 pieces. Shipments are made in polybags or boxes, tailored for bulk or retail requirements, ensuring safe and efficient delivery.
