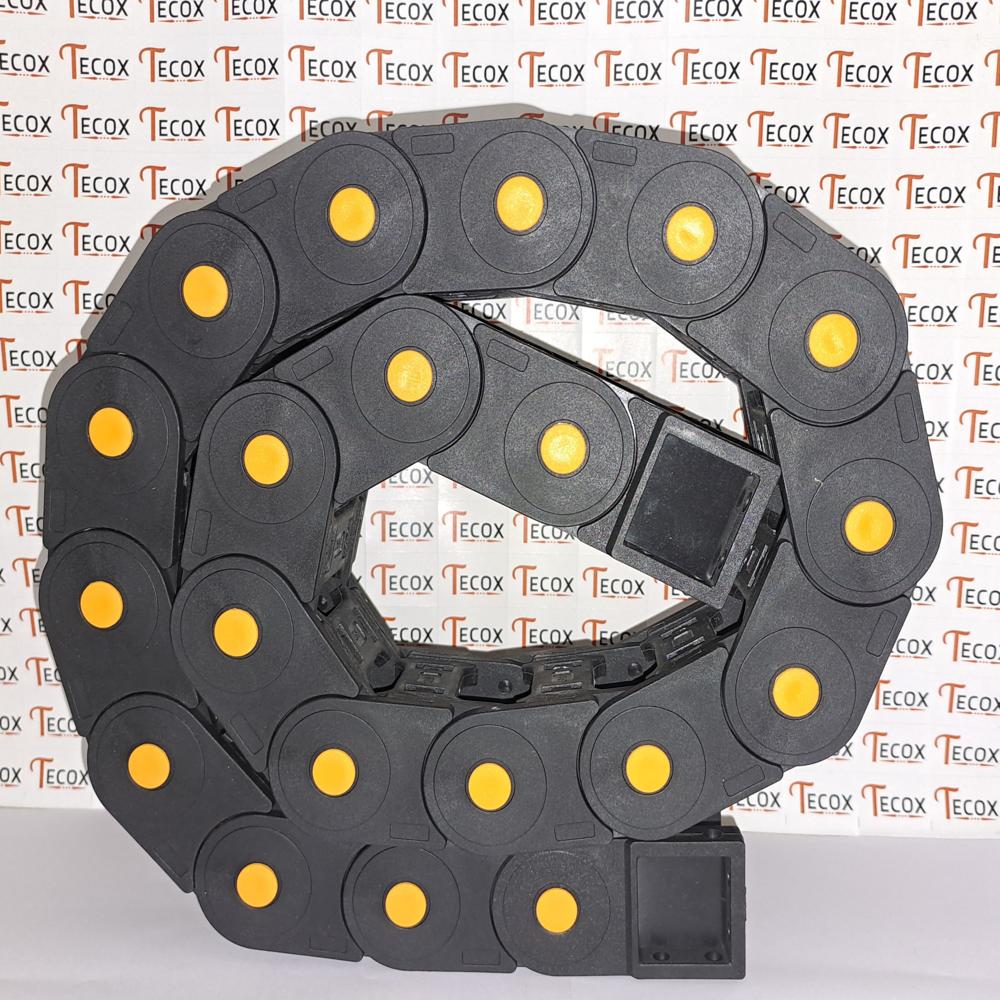

CABLE DRAG CHAIN

CABLE DRAG CHAIN Specification

Cable Type
Not applicable (chain only)

Operating Temperature
-40C to +130C

Rated Temperature
-40C to +130C (depends on polymer)

Locking Type
Snap open design

Weight
Lightweight, typically 0.3-1.5kg/m (depends on size)

Install Type
Horizontal and vertical installation possible

Tensile Strength
High - resistant to breakage

Diameter
Inner height/width: commonly from 10mm up to 100mm

Usage & Applications
Guidance and protection of cables and hoses in dynamic motion applications

Features
Flexible, durable, high load capacity, easy to assemble and install, wear-resistant, noise-reducing design, snap open design for easy cable loading

Product Type
Cable Drag Chain

Length
Customizable, commonly available in 1 meter lengths

Voltage
Not applicable (mechanical carrier, not electrical component)

Application
Cable and hose management for moving machinery, CNC machines, automation, robotics, industrial equipment

Storage Temperature
-40C to +90C

Dimension (L*W*H)
Typically ranges from 10x15mm to 100x200mm or as per requirement

Color
Black with yellow connecting dots/caps

Material
High-grade reinforced polyamide (nylon) PA66

Size
Width and height as per model - commonly from 10x15mm up to 100x200mm

Fire Retardant Option
Available on request

Design Type
Modular, customizable to length and radius requirements

Service Life
>5 million cycles (depends on operating conditions)

Flame Resistance
UL94 V-0 (option, on request)

Mounting Bracket Material
Steel or reinforced polymer, optional accessories

Static Load Capacity
Up to 50 kg/m (depends on chain size and width)

Noise Level
Low running noise

Corrosion Resistance
Excellent - non-metallic, suitable for harsh environments

Oil & Chemical Resistance
Excellent, suitable for most industrial lubricants and chemicals

Link Opening Type
Top and/or side openable

UV Resistance
Good, suitable for outdoor applications depending on material grade

Bending Radius
Minimum 10-15 times inner height (model dependent)

Maximum Supported Travel Length
Up to 40 meters (depends on size and configuration)

About CABLE DRAG CHAIN

Cable drag chains (cable carriers) are modular, high-strength polyamide (PA) or metal guides designed to protect and manage cables and hoses on moving machinery, supporting high-speed operations, long travel distances, and reducing wear
